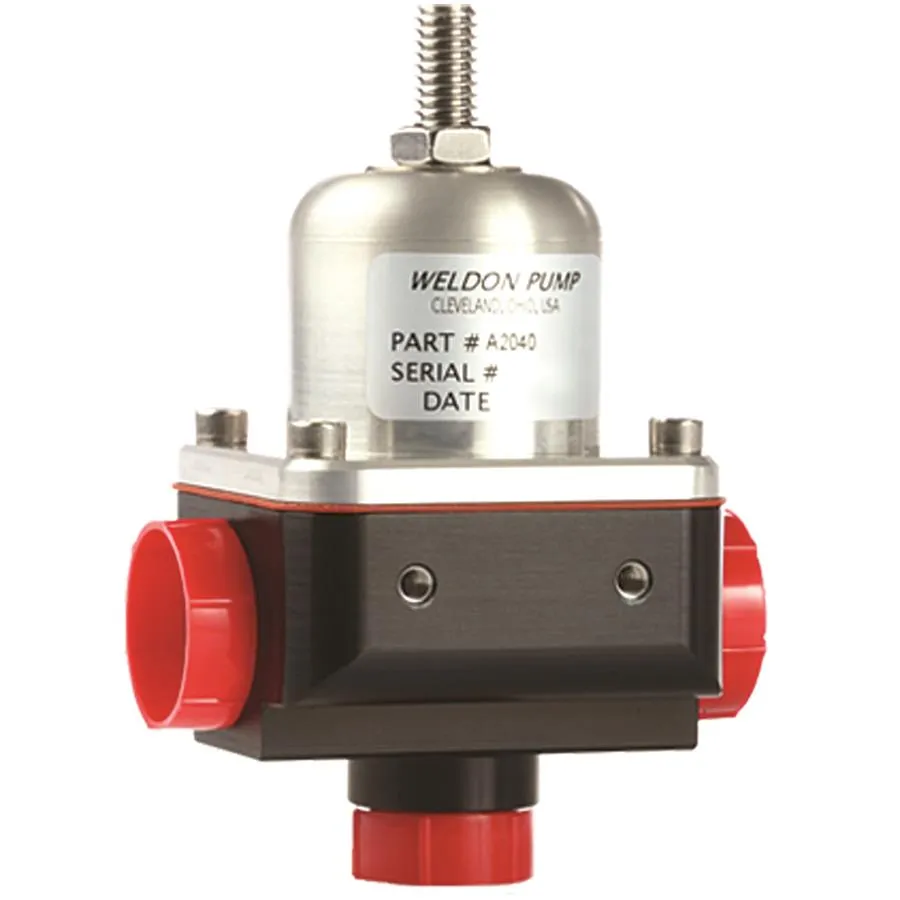

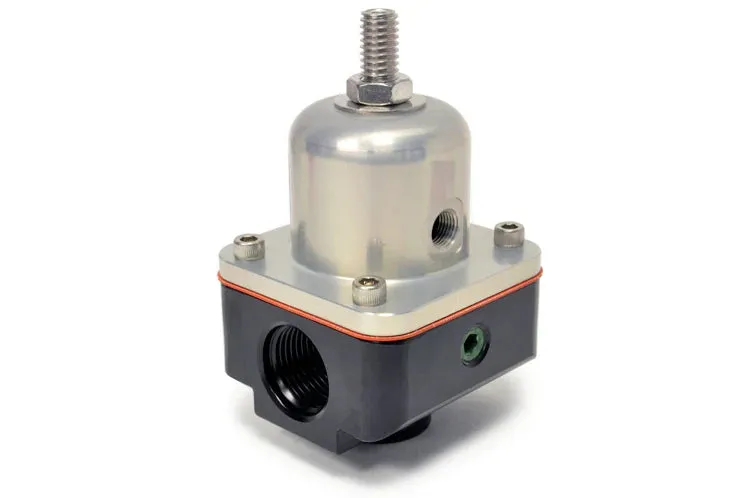

Weldon A2040 Series bypass fuel pressure regulators will exceed your performance expectations. They maintain a steady fuel delivery during dramatic changes in fuel demand, such as WOT conditions, boost application, and gear changes with precision pressure control. A2040 Series regulators are for use with all Weldon pumps, as well as pumps from other manufacturers.

Features:

• Coast Guard approved
• All Weldon Regulators maintain steady fuel delivery during dramatic changes in fuel demand, such as WOT conditions, boost application and gear changes with precision pressure control
• .281" bypass orifice
• Fluorosilicone diaphragm
• Flows up to 6 GPM
• 1/8" NPT Gauge Port
• 1/8" NPT manifold pressure reference port
• Adjustable between 28 – 120 PSI
• Fuel pressure increases on a 1:1 ratio with boost
• Two -10 pressure ports / -8 return port
• Billet Aircraft Aluminum with MIL-SPEC anodizing
• For use with all Weldon pumps as well as pumps from other manufacturers

Compatible Fluids:

• Gasoline
• Methanol
• Diesel
• Ethanol
• All racing fuels
