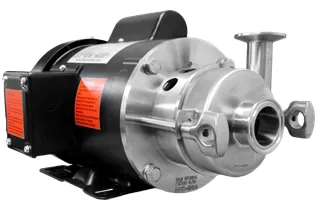

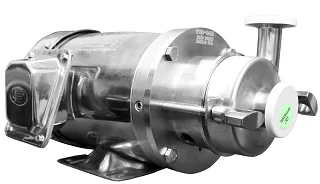

Name: C-100 sanitary tri-clamp centrifugal pump ( In- Stock)
SKU: 409828

C-100 sanitary tri-clamp centrifugal pump ( In- Stock)

$ 47.84

$ 62.19

Model:

Enclosure:

Unavailable

Please select combo product attributes

The combo subtotal is $,SAVE$

This information is provided for reference purposes only . To find out which pump is best for your application, please fill out our

TEFC “Totally Enclosed, Fan Cooled":

Totally enclosed motors are suitable for use in humid environments. The motor is dust tight and has a moderate water seal as well.

Washdown:

Designed to withstand high pressure wash-downs or other high humidity or wet environments. This does not allow for the motor to be submerged.

Specifications:

Pump wetted materials: 316L Stainless Steel

Connections: 1 1/2" X 1" Tri-Clamp

Impeller size: 3 11/16"

Mechanical seal: Carbon (Standard)

Seal type: D seal (Standard), DG seal not available

Elastomers: Buna (Standard), FKM and EPDM (Optional)

DO YOU HAVE THE MOTOR?

Please contact us for price

C-100 Head pump (Without motor)

Ready to install in a Nema C-face motor

WHAT NEMA FRAME DO YOU NEED?

For more Info. please call 281-288-0286

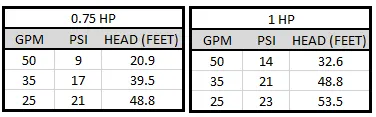

Motors: 0.75 - 1 HP

Single phase motor(TEFC)	3-Phase motor (Washdown)
* 1-Phase, 60Hz * 3600 RPM * 115/208-230 Volt * TEFC Enclosure * 1.15 Service Factor * Class F Insulation * C-face - Rigid Base * Rolled Steel * NEMA 56C * Capacitor start	* 3-Phase, 60Hz * 3600 RPM * 208-230/460 Volt * TEFC Enclosure * 1.15 Service Factor * Class F Insulation * C-face - Rigid Base * Stainless Steel washdown * NEMA 56C * Corrosion resistant
